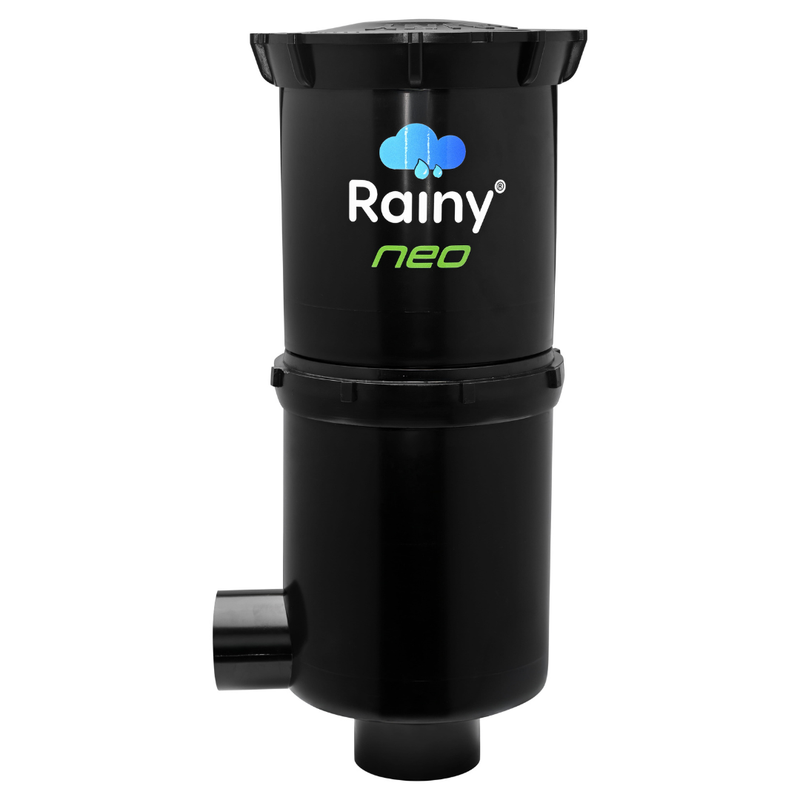

Rainy Filters FL-80 with Open Lid Showing Internal View for Effective Rainwater Harvesting

Neo

₹ 4,425.00
₹ 4,425.00 ₹ 4,425.00
Tax included. Shipping calculated at checkout.

Up to 1200 Sq. Ft

  • In stock
  • Inventory on the way

India’s No.1 Self-Cleaning Rainwater Harvesting Filters — advanced patented technology designed to deliver efficient filtration, automatic cleaning, and reliable performance in every rainfall.
3
3 years Warranty
Fast Delivery Fast Delivery
Easy Returns Easy Returns

Difficulty placing an order or want to speak to our experts

☎ Speak to our Expert
Salient Features
  • Self Cleaning | Auto Flush Out | Works on Gravity
  • Dual Intensity | Withstands High Intensity Rainfall
  • Easy to Install | 360° Rotatable
  • Low Maintenance | High Efficiency | Cost Effective
  • HDPE Material | SS-304 Food Grade Material
  • Unmatched 10 Years Warranty
Technical Specifications
Suitable for Area Upto 110 SQMTRS
Intensity of Rainfall 5 mm/Hour to 50 mm/Hour
Filter Type Open ended, Non-clog
Working Principle Cohesive Force & Centrifugal Force
Operating Pressure 1 foot of Gravity Head (0.060kg/cm2)
Max Discharge at (CWO) 85 Liters per minute
Filter Element SS-304 Multi-Surface Screen - Food Grade
Mesh Size 250 Microns
Inlet Size 90 MM
Clean Water Outlet size (CWO) 63 MM
Drain Outlet size 90 MM
Filter Housing UV Stabilized - HDPE
Filter Efficiency Above 90%*
Source of Power Gravity


Overall Dimension

What's Included in The Box?
  1. HDPE Filter Housing ( UV Treated )
  2. SS-304 Filter Element ( Food Grade )
  3. Guiding Plate
  4. Heavy Duty Wall Bracket
  5. High Quality L - Clamps | U - Bolts for Pipe Fixture
  6. Anchor Bolts to Install Wall Bracket
  7. Intermediate Bush
  8. Clean Water Pipe Connecting Bush
  9. Drain Pipe Connecting Bush
  10. Hose Clips
  11. Cleaning Brush
  12. User Guide
Neo

Neo

₹ 4,425.00
₹ 4,425.00 ₹ 4,425.00
Rainy Filter Setup Banner Showing Complete Rainwater Harvesting Process and Working Flow
Rainwater Storage System with Rainy Filters for both light drizzling and heavy downpour
COHESIVE FORCE CENTRIFUGAL FORCE

WORKING PRINCIPLE

Dual Intensity Technology

Our filters are expertly designed to perform efficiently under any rainfall intensity, whether it's a light drizzle or heavy downpour. They ensure optimal filtration and water collection, adapting seamlessly to varying weather conditions and providing reliable performance year-round
