Rainwater Harvesting: A Complete Guide to Sustainable Water Use

Introduction

Have you ever watched rainwater flow off your roof and wondered if it could be saved? That’s exactly what Rainwater Harvesting does—collecting and storing rain for later use. A Rainwater Collection System captures water from rooftops, filters it with a Rainwater Filter System, and stores it in tanks for home, farm, or industrial use.

Though it sounds modern, rainwater harvesting is an ancient practice. Civilisations in India, Rome, and Greece built tanks, wells, and ponds to store rainwater. Today, with water shortages, rising bills, and climate change, the value of rainwater harvesting is greater than ever. By combining traditional wisdom with modern Rainwater Harvesting Accessories, we now have smarter and more reliable systems to save every drop for the future.

What is Rainwater Harvesting?

Rainwater harvesting is a simple idea: instead of letting rainwater run off your roof and disappear into drains, you collect it, clean it, and store it for later use. This stored water can then be used at home, on farms, in industries, or even to recharge the ground and support the environment.

Think of it as turning your roof into a free water source. Every time it rains, you’re given clean water straight from the sky. All you need is a proper system to capture and save it.

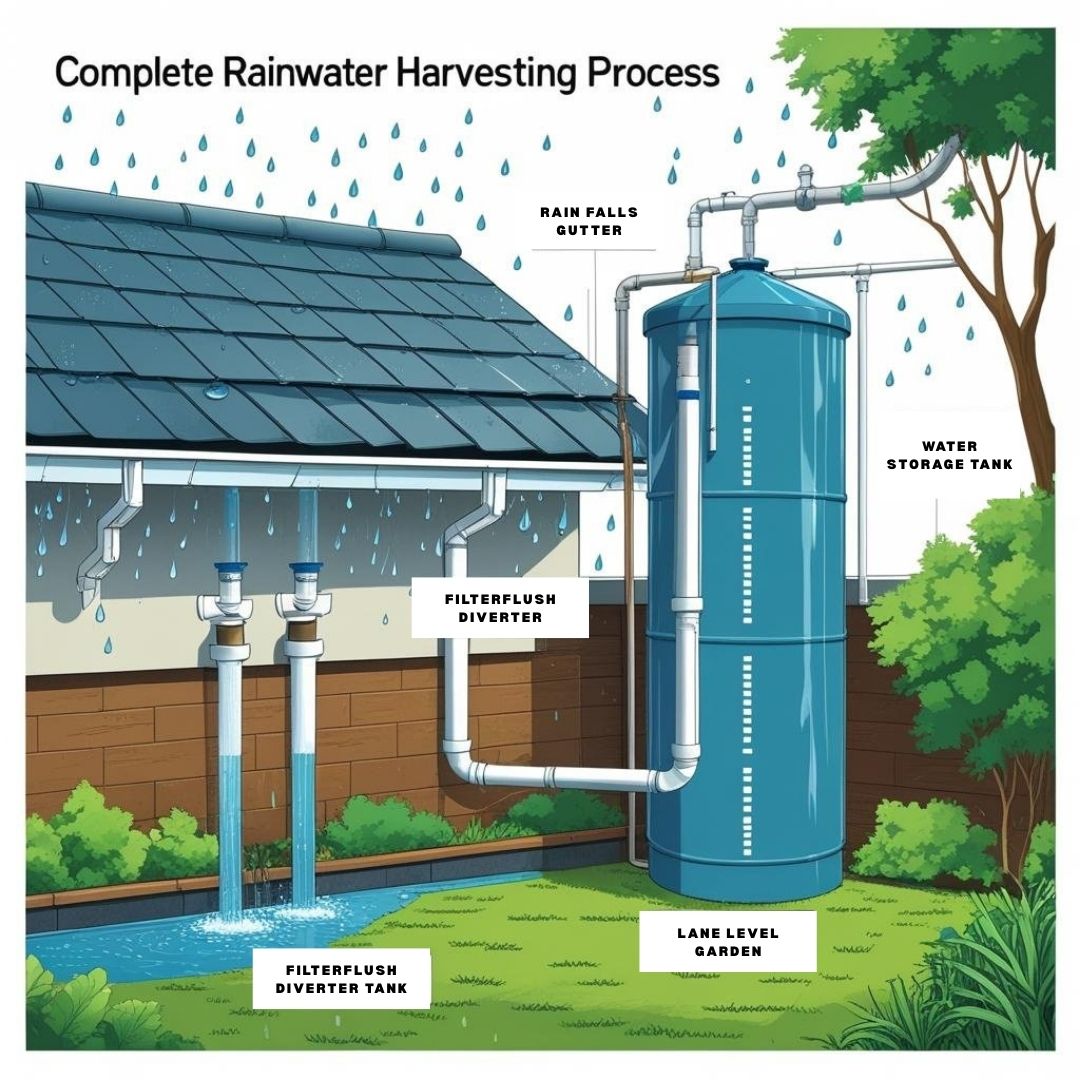

How a Rainwater Harvesting System Works?

A typical Rainwater Harvesting System is made up of a few simple parts:

• Catchment Area: This is usually your rooftop or any surface where the rain first falls.


• Conveyance System: Gutters and downpipes that guide the water from the roof into a storage tank.


• Rainwater Filter System: Before the water is stored, it passes through filters like the Rainy Filter FL 350, FL 500. These remove dust, leaves, and dirt to make the water clean and safe for use.


• Storage Tank: A tank or underground reservoir where the filtered water is stored for later use.


• Distribution Network: Pipes and pumps that supply the stored water wherever you need it—whether for drinking (with extra treatment), gardening, washing clothes, or even industrial use.




Traditional Idea, Modern Solutions

Rainwater harvesting is not new—it has been practised for thousands of years. People used ponds, tanks, wells, and kunds to store rainwater for survival during dry months. The difference today is that we now have modern Rainwater Harvesting Accessories that make the process easier, safer, and more efficient. With better filters, stronger tanks, and smart monitoring, harvesting rainwater has become something any homeowner or business can do with ease.

In short, rainwater harvesting is nature’s gift combined with human creativity—a way to save money, secure water, and protect the environment, all at the same time.

Uses of Rainwater Harvesting

Domestic Use

At home, harvested rainwater can reduce dependency on municipal water and cut bills. With a proper Home Water Filtration System, it becomes safe and reliable for:

• Drinking and cooking – Clean, filtered rainwater can be healthier and fresher.


• Bathing, washing, and cleaning – Everyday chores become easier without relying entirely on tap water.


• Gardening and lawn care – Plants thrive on soft rainwater compared to hard municipal water.


• Toilet flushing – Saves a large amount of potable water.



Agricultural Use

For farmers, a Rainwater Harvesting System is a real game-changer:

• Crop irrigation – Ensures water availability during dry spells.


• Livestock watering – Provides a steady, natural water supply.


• Less borewell usage – Protects groundwater from over-extraction.



Industrial Use

Using industrial rain water harvesting can reduce their dependence on costly municipal supplies:

• Cooling towers – Rainwater helps regulate machinery temperatures.


• Process water – Used in manufacturing and cleaning processes.


• Cost reduction – Saves companies money on water bills.



Environmental Use

Rain water harvesting also benefits the planet:

• Recharges groundwater – Maintains underground reserves for future generations.


• Supports biodiversity – Creates water sources for plants, trees, and local wildlife.


• Prevents erosion and runoff – Reduces soil loss and flooding in cities.



In short, a well-designed Rainwater Collection System serves multiple purposes—making it an innovative, sustainable solution for agriculture, people, businesses, and the environment.

Different Types of Rainwater Harvesting

1. Rooftop Rainwater Harvesting

Rainwater is collected from the roof and directed into a storage tank through pipes and filters. Rooftop rainwater harvesting is the most common method for homes and offices.

2. Surface Runoff Harvesting

Rainwater flowing on roads, gardens, or open land is collected through channels and stored in tanks or ponds. It helps prevent waterlogging and makes use of excess runoff.

3. Recharge Pits/Percolation Pits

Rainwater is allowed to seep into the ground through pits filled with stones, sand, or gravel. This improves groundwater levels and keeps borewells healthy.

4. Recharge Wells

Water is directed into deep wells or shafts to replenish underground water. It is useful in areas with declining groundwater levels.

5. Underground Tanks/Cisterns

Rainwater is collected and stored in underground tanks. This keeps water cool, safe, and protected from sunlight and mosquitoes.

6. Check Dams/Percolation Tanks

Small barriers are built across streams to hold rainwater. It slowly seeps into the ground, recharging aquifers and supporting agriculture.

Methods to Harvest Rainwater

Traditional vs Modern Methods

1. Rain Barrels

A simple method where small tanks or barrels are connected to rooftop pipes. The rain runs down the roof and collects in the barrel. It’s affordable, easy to install, and great for watering plants or washing your car.

2. “Dry” System

Here, the rainwater flows straight from the roof into a storage tank through pipes. Since the pipes only carry water during rainfall, it’s called “dry.” This system is low-cost and works well for small houses, but usually has limited storage capacity.

3. “Wet” System

This is a bit more advanced. Underground pipes always stay full of water, and whenever it rains, the water gets pushed into a storage tank. It’s perfect for bigger houses or places that want to collect large amounts of rainwater.

Modern Technologies

Rainwater Filters and Accessories
To make sure the stored water is clean, modern rainwater filters such as Rainy Filter FL 80, Rainy Filter FL 150, Rainy Filter FL 250, Rainy Filter FL 350, and Rainy Filter FL 500 are used. These remove dust, leaves, and dirt so the water is safe for use.

Eco-Friendly Integrations
Rainwater systems can also be paired with solar power panels, creating a smart home solution where you save both water and energy.

Smart Sensors & Treatment Units
Newer systems come with sensors that check water levels and quality. Some even have treatment units that purify water for safe household use.

Modular Storage Tanks
Instead of using one big tank, modular tanks are built in sections. They save space, are easy to install, and can be expanded if you need more storage.

Urban Add-ons
In cities, rain water harvesting is combined with rooftop gardens, rain gardens, and permeable pavements. These not only store water but also reduce flooding, cool down the surroundings, and improve air quality."

Comparison of Rainwater Harvesting Methods

How to Create a Complete Rainwater Collection System? (Step-by-Step)

1. Assess Roof / Catchment Area
Start by measuring your roof size and checking how much rainfall your area usually gets. A bigger roof and higher rainfall mean more water you can collect.

2. Choose Storage
Decide where you want to keep the water. Tanks can be plastic, concrete, or metal. Pick the right size based on your needs—small for home gardens, large for farming or full household use.

3. Design Conveyance
Install gutters and downpipes along your roof edges to guide rainwater into your tank. A first-flush system is important—it throws away the dirty first flow of rainwater (with dust and leaves) so only cleaner water enters storage.

4. Filtration
Before storing, water must pass through a filter. Use a Rainwater Filter System like Rainy Filter FL 250 or Rainy Filter FL 500 to remove dirt and make water safe for everyday use.

5. Pumping & Distribution
To use the stored water, connect a small pump. This lets you send water to taps inside the house, garden hoses, or irrigation pipes.

6. Maintenance & Safety
Check the system regularly. Clean filters, remove leaves from gutters, and make sure tanks are sealed to keep insects and dirt out. This keeps your water fresh and safe.

How Much Rain Can I Collect Using Rain water Harvesting?

It’s actually easy to calculate how much rainwater you can collect. All you need is a simple formula:

Formula:

Roof Area × Rainfall × Runoff Coefficient = Harvested Water

• Roof Area = The size of your roof in square metres.


• Rainfall = The average yearly rainfall in your area (in millimetres).


• Runoff Coefficient = A number (0.6–0.9) that shows how much rain you can really collect after losses (like evaporation, spillage, or leakage).



Example:

• Roof size = 100 m²


• Average rainfall = 800 mm per year


• Runoff coefficient = 0.8 (meaning 80% of water is usable)



Calculation:

100 × 800 × 0.8 = 64,000 litres per year

This means with just a 100 m² roof, you can collect 64,000 litres of water in a year—enough for gardening, cleaning, and even daily household use if filtered properly.

So, the bigger your roof and the higher the rainfall, the more water your Rainwater Collection System can save for you.

Urban Implementation of Rainwater Harvesting Systems

1. Apartments and Houses
In cities, the easiest way to harvest rainwater is from rooftops. The rainwater is collected through pipes, passed through a rainwater filter system, and stored in a tank. Families can then use it for cleaning, gardening, or even drinking (if properly filtered).

2. Community Projects
 Large spaces like parks, schools, and parking lots also collect huge amounts of rain. Instead of letting it flood the roads or drain away, communities can store it in underground tanks. This water can then be used for toilets, landscaping, or firefighting reserves.

3. Policies and Government Support
Many city governments encourage or even make it compulsory to install rain water harvesting systems in new buildings. Some offer subsidies, tax benefits, or discounts if you set up a system. This makes it easier and cheaper for homeowners and businesses to adopt.

Here are statewise rules for harvesting rain water -

• https://shop.rainyfilters.com/blogs/page/odisha-chhata-rainwater-harvesting-scheme


• https://shop.rainyfilters.com/blogs/page/different-ways-of-rainwater-harvesting-in-tamil-nadu


• https://shop.rainyfilters.com/blogs/page/everything-you-need-to-know-about-rainwater-harvesting-in-kerala


• https://shop.rainyfilters.com/blogs/page/understand-the-different-techniques-of-rainwater-harvesting-in-bangalore



Rainwater Harvesting with Country Examples

1. India
India has been saving rainwater for centuries. Old stepwells and tanks were built to store water. Today, many cities like Chennai and Bangalore use rooftop rainwater harvesting systems in India to fight water shortages.

2. USA
In the United States, people often use rainwater harvesting in eco-friendly homes and farms. Big buildings also collect rainwater for toilets, gardens, and cooling systems, helping them save water and money.

3. UK
The United Kingdom focuses on urban projects. Many houses and offices now use small rainwater collection systems. The UK government also supports green building codes, making it easier to adopt. You can check rainwater harvesting components for UK.

4. Philippines
In the Philippines, rainwater harvesting is very important in rural areas and small towns. Families and schools often use it to make sure they have clean water during the dry season.

Advantages of Rainwater Harvesting

Why is Rainwater Harvesting Important?

The importance of rainwater harvesting lies in ensuring water security in times of drought, reducing water bills, and preventing water scarcity. It also reduces flooding in urban areas and replenishes groundwater.

Key Benefits of Rainwater Harvesting System

✔ Independent water supply – You don’t need to depend entirely on municipal systems.

✔ Reliable during droughts – Acts as a backup supply when water sources dry up.

✔ Helps adapt to climate change – Rain patterns are becoming unpredictable, and having your rainwater harvesting system ensures resilience.

✔ Protects the environment – Reduces strain on rivers, lakes, and other natural sources.

✔ Saves money – Less use of municipal water means lower water bills over time.

✔ Supports groundwater recharge – Prevents over-extraction of borewells.

✔ Manages floods – Collecting excess rain reduces urban flooding and soil erosion.

In short, the advantages of a rainwater harvesting system are not just about saving money—they are about building a safe, sustainable, and eco-friendly future.

Limitations and Challenges in Rainwater Harvesting

1. Water Quality Issues
   Rainwater is clean, but when it touches the roof, it can pick up dust, bird droppings, or leaves. That’s why a rainwater filter is always needed before using it for drinking or cooking.


2. Storage Limitations
   You need tanks or underground storage to keep the collected water. If your home has limited space, storing large amounts of water can be tricky.


3. Costs
   Setting up a rainwater harvesting system (tanks, pipes, filters) may feel expensive at first. But remember—it’s a one-time investment that saves money on water bills in the long run.


4. Maintenance
   Just like cleaning your home, your system also needs care. Filters, pipes, and tanks must be cleaned regularly to avoid clogging, smell, or bacteria growth.


5. Seasonal Variation
    Rain doesn’t fall all year round. In dry or low-rainfall areas, the system may not give enough water. That’s why it works best when combined with other water sources.


6. Contamination Risk
   If the system is not maintained correctly, stored water can become stagnant (still water) and attract mosquitoes or germs. Using a good filter system and keeping tanks covered solves this problem.

In short: Rainwater harvesting is amazing, but it works best when you plan for filters, enough storage, regular cleaning, and seasonal changes.

Conclusion and Next Steps

Rainwater harvesting is more than just a water-saving practice—it’s a way to secure our future. With simple planning, the right rainwater harvesting methods, and efficient Rainwater Filters like Rainy Filter FL 150, Rainy Filter FL 350, and Rainy Filter FL 500, anyone can set up a system at home or in business.

Quick Action Checklist:

• Check your roof size and local rainfall.

• Plan where you’ll store the water.

• Add a rainwater filter system for clean water.


• Do simple cleaning and checks regularly.

Next step? Start small—set up a barrel or rooftop tank—and expand gradually. By doing so, you contribute to sustainability, save money, and protect the environment.

FAQs:

Q1: Is harvested rainwater safe to drink?
Yes, but only after proper treatment. Using a good home water filtration system or rainwater filter makes it safe.

Q2: Do I need permits?
It depends on where you live. Small home systems are usually fine, but large setups may need approval. Always check with your local authority first.

Q3: Can I use it in winter?
Yes, you can. Just make sure tanks and pipes are insulated to avoid freezing. Frost-proof fittings keep the water flowing smoothly.

Q4: How much does it cost?
Simple rain barrels are budget-friendly. Larger rainwater harvesting systems cost more but save money over time.

Q5: What is the lifespan of a system?
With regular cleaning and care, a rainwater harvesting system lasts 15–20 years. Proper care ensures safe water and longer system life.
